98+ ranger race Longtravel-coil spring chassis

  • Sale
  • Regular price $4,800.00


Take your truck to the ultimate level of offroad performance with this race-bred suspension system. This kit achieves 16-18” of wheel travel using 10-12” coilover shocks (not included) it is 5.5” wider per side, and 1” forward for extra firewall clearance. Major clearancing/relocation of under hood items is necessary to achieve full up travel for the 18+ wheel travel.

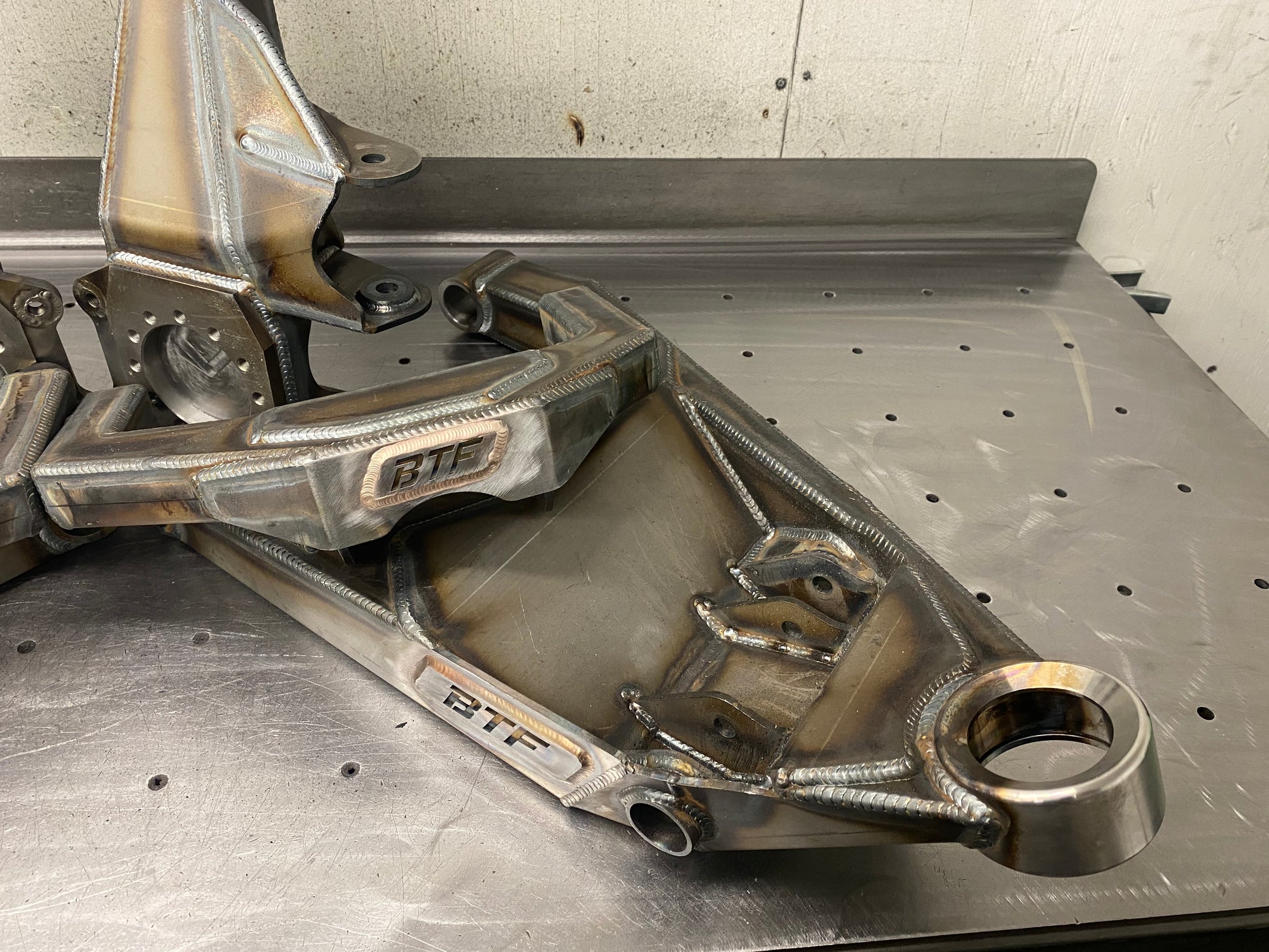

Lower arms pivot on heavy duty polyurethane bushings and the boxed upper arms pivot on 3/4” heim joints for extra strength and camber/caster adjustment. Both upper and lower balljoints are replaced with massive 1.5” FK uniballs.

Kit is built to accept Dana 44 hubs and Wilwood superlite calipers

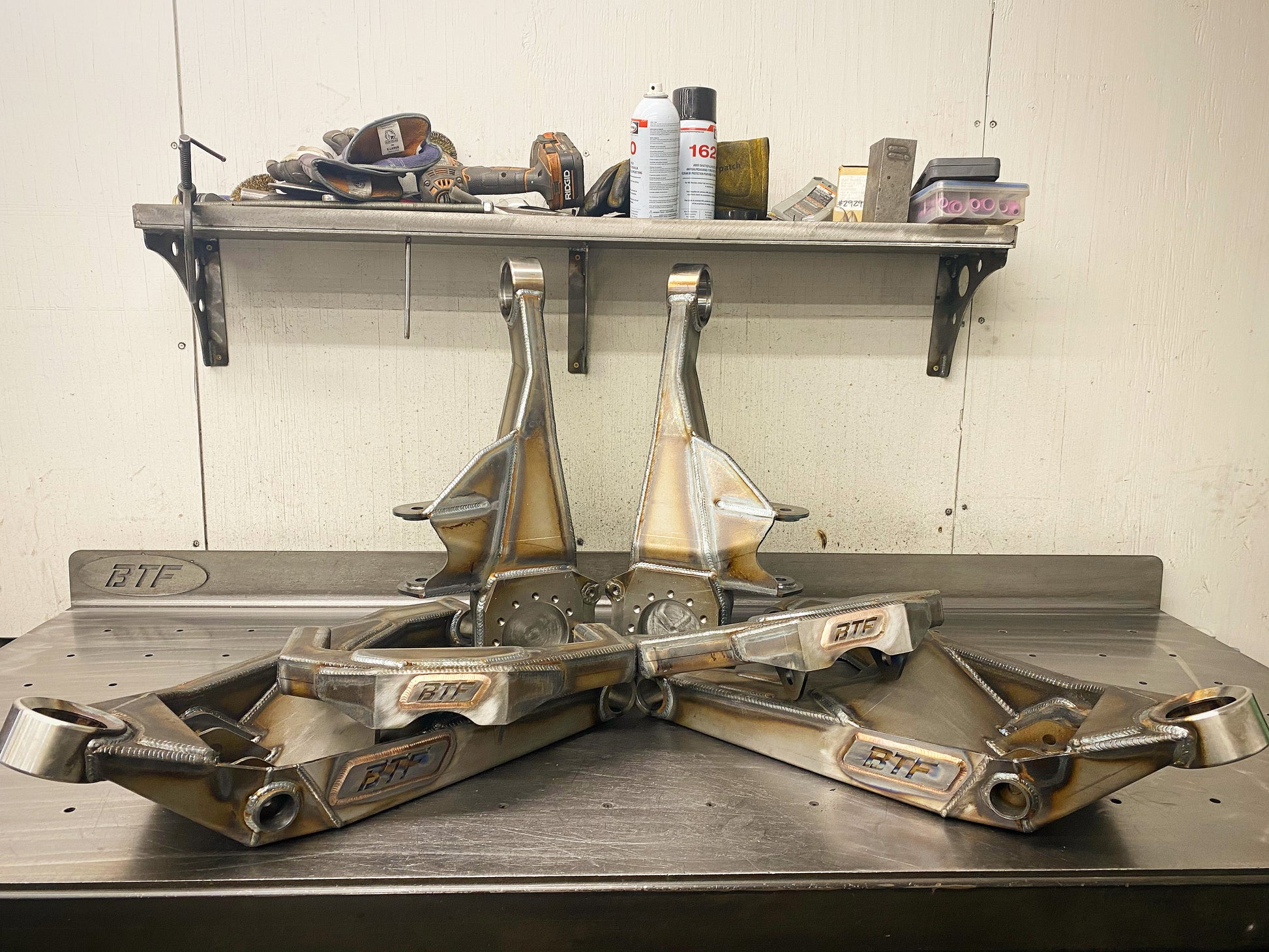

kit comes with upper and lower control arms, fabricated spindles, full heim tierods with adapter clevises for rack and pinion, new upper arm relocation mounts, and stainless braided brakelines.

Made to order, approximately 8-12 week lead time. No refunds once order is placed.
