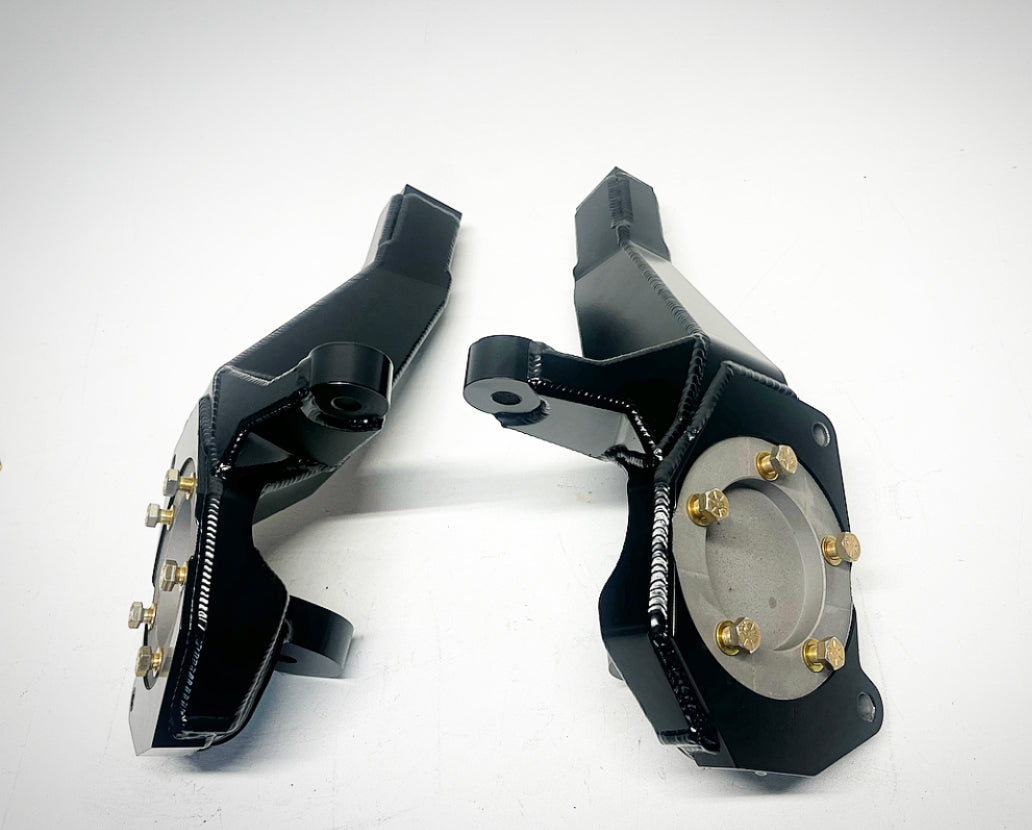

These replace most low quality aftermarket cast iron lift knuckles that have weak spindles/bearing snouts. These knuckles accept a dana 35 bolt on spindle (not included) and is compatible with your factory calipers. Track width is increased by roughly 1” per side compared to most aftermarket lift knuckles.
Required parts to complete these are from a ‘95 ranger 4x4 as follows: spindle, spindle nuts, inner and outer wheel bearings, rotors, inner wheel seal, and a dust cover. These can be found at various online retailers or as a package here on our website as well.
Parts will be shipped powdercoated satin black.
Top of knuckle is machined to accept a 5/8” nut/bolt so a uniball upper arm is required.
Some frame clearancing may be necessary on stock trackwidth coil spring trucks to keep the knuckle from contacting the coil bucket at full droop.
ANTILOCK BRAKE AND SPEED SENSOR FUNCTIONS ARE NO LONGER USEABLE WITH THESE KNUCKLES. Sold for off-road use only.
parts are made to order, please call for approximate lead time before ordering. NO REFUNDS ONCE PARTS ARE ORDERED.
