1st Gen Tacoma Long Travel Suspension

  • Sale
  • Regular price $2,650.00


At 4.5” wider per side and 1” forward for extra firewall clearance, this kit allows up to 15” of useable wheel travel. Weak upper balljoints are replaced by 1” FK uniballs, and stock rubber bushings are replaced by durable polyurethane, or optional heims for alignment adjustability.

For 4WD kits, we build custom CV axles with heat treated 300m axle shafts and machined / rebuilt / rebooted OEM CV joints for added articulation and strength. Axles come completely assembled and ready to bolt on.

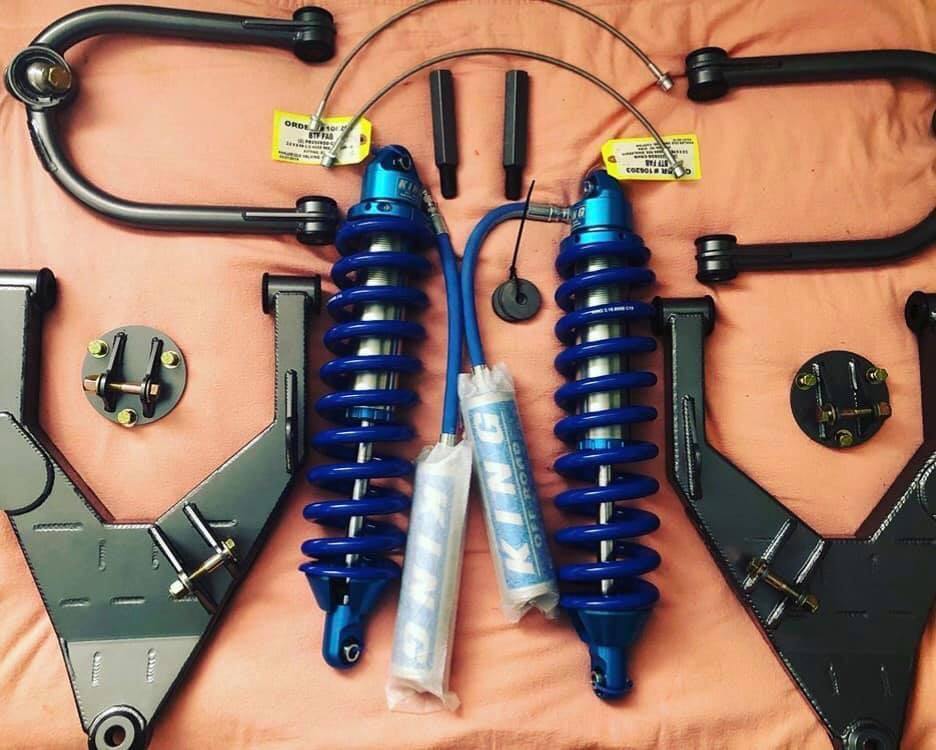

Kit includes: boxed upper and lower control arms with Energy poly bushings, tie rod extensions, extended steel braided brake lines (replaces hard and soft sections of stock lines), spindle to upper uniball adapters, and custom coilover top brackets. Arms come raw or powdercoated gunmetal grey.

If you select adjustable uppers with heims, your upper arms will be tube instead of boxed.

*Custom King and Radflo coilovers can be added to your order, message or email us for details!*

Rock crawling, trail running or prerunning a race course, this suspension does it all!

Fits 6 lug trucks only!

8-12 week lead time, depending on options, order volume and availability of materials. Built to order, all sales final.
