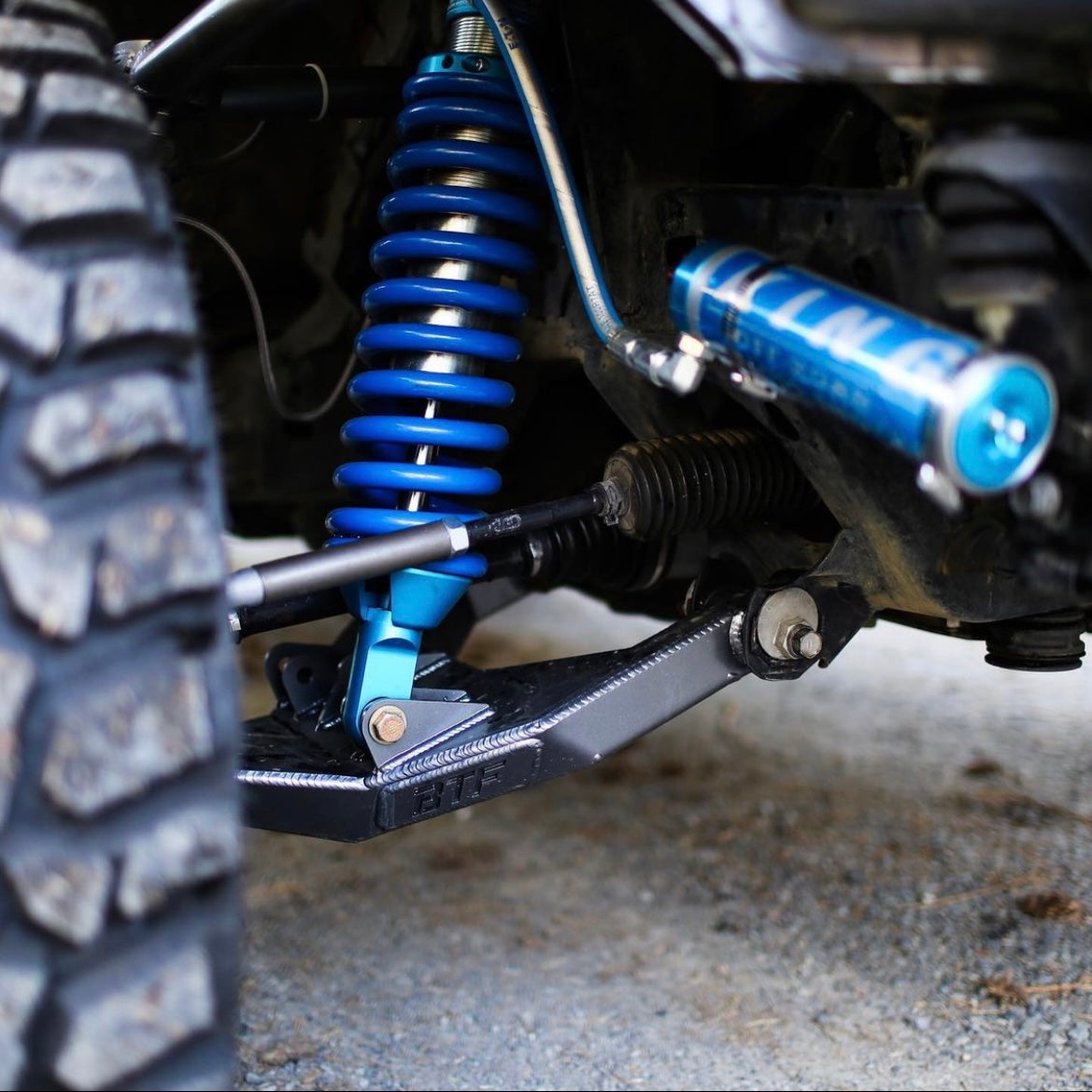

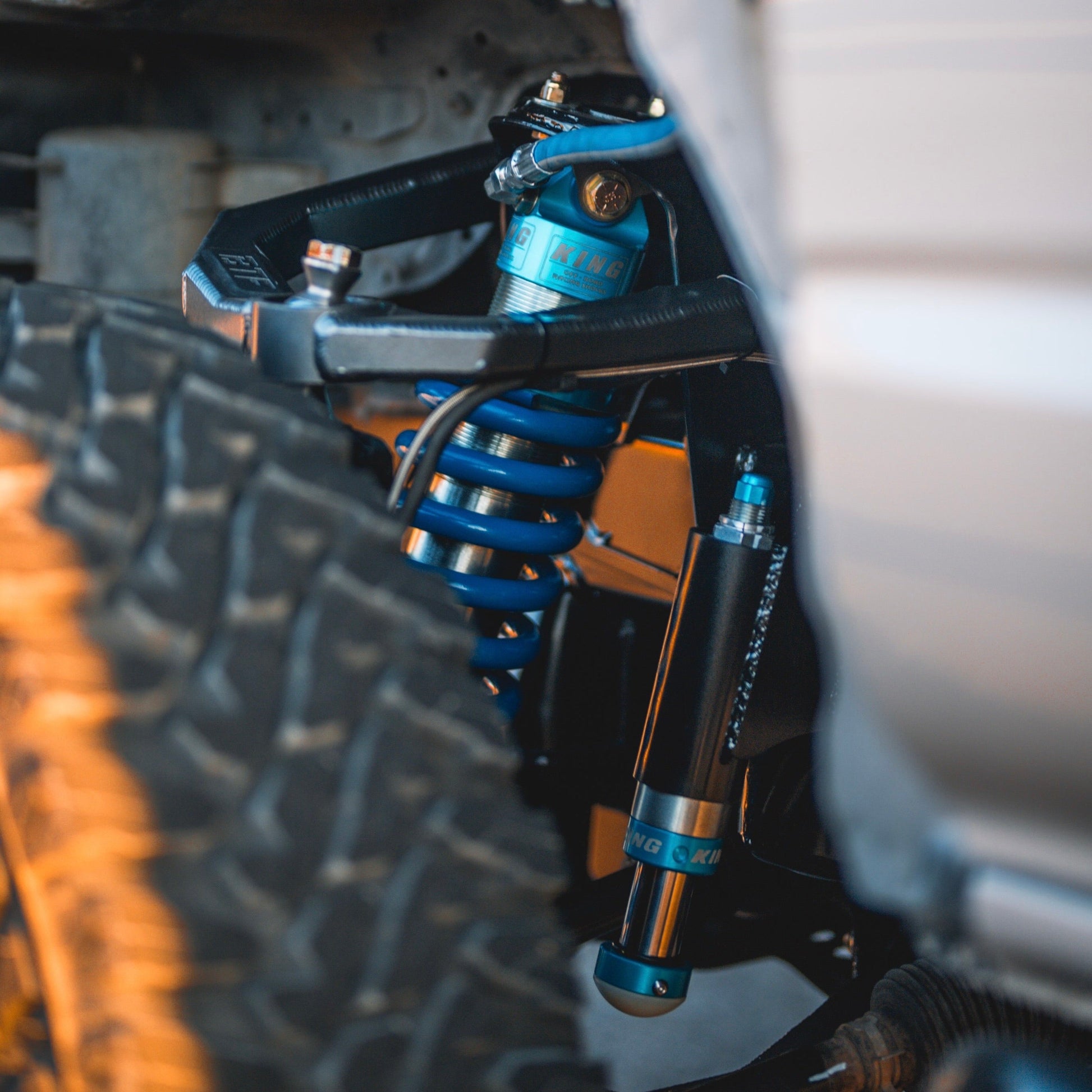

At 4.5” wider per side and 1” forward for extra firewall clearance, this kit allows up to 14” of useable wheel travel. Upper and lower balljoints are replaced by 1.25” and 1” FK uniballs for maximum strength and durability, and stock rubber bushings are replaced by durable polyurethane or optional heims for alignment adjustability.
For 4WD kits, we build custom CV axles with heat treated 300m axle shafts and machined / rebuilt / rebooted OEM CV joints for added articulation and strength. Axles come completely assembled and ready to bolt on.

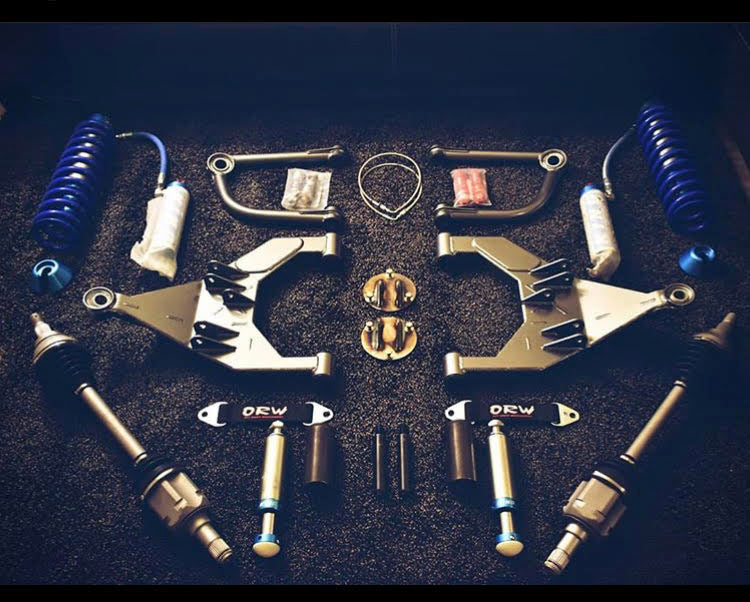

Kit includes: boxed upper and lower control arms with Energy poly bushings, tie rod extensions, extended steel braided brake lines (replaces hard and soft sections of stock lines), spindle to upper uniball adapters, and custom coilover top brackets. Arms come raw or powdercoated gunmetal grey. Adjustable upper arms equipped with FK heims available as an option.
*Custom coilovers can be added to your order, message or email us for details!*
Rock crawling, trail running or prerunning a race course, this suspension does it all!
Fits 6 lug trucks only!
8-12 week lead time, depending on options, order volume and availability of materials. Built to order, all sales final.
